Crumar Bit 01

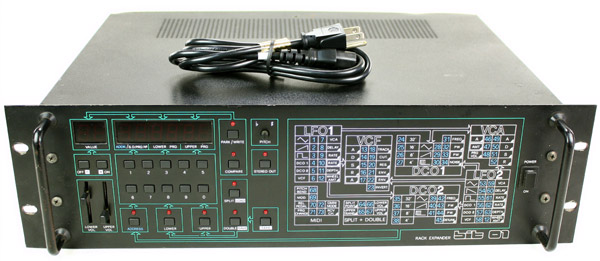

The Bit-01 is a 6-voice programmable polyphonic analog synthesizer with digital control. It is essentially a rackmount version of the Bit-99 keyboard synthesizer. It has two analog oscillators per voice that are digitally stabilized and controlled. Also on-board are resonant filters, ADSR envelopes and two LFOs. Fairly easy hands-on editing and a layer/split function make this a very useable poly-synth! The MIDI implementation is basic but useable and there are 99 memory patches. The Bit-01 is well suited for studio use and in all forms of electronic music.
Demos & Media
Specifications
Polyphony -
6 voices
Oscillators -
2 DCOs per voice (triangle, sawtooth, pulse waveforms, noise)
LFO -
2 LFO's (triangle, ramp and square waveforms)
Filter -
Resonant filter with ADSR
VCA -
ADSR
Keyboard -
None
Memory -
99 patches (75 single programs and from 76 to 99 for "split" or "double" modes)
Control -
MIDI
Date Produced -
1985 - 88
Resources
Images from Perfect Circuit Audio.
