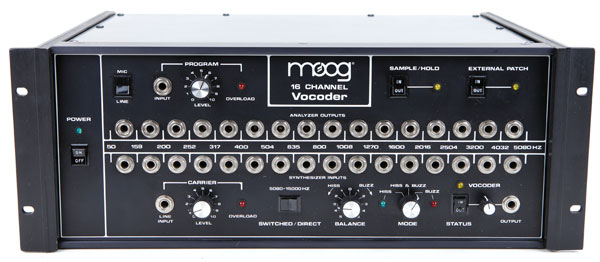

Moog Vocoder Image
VSE Rating
User Rating

In 1979 Moog released a vocoder of their own, although its design and architecture is almost identical to the Bode 7702 vocoder. It's a 16-band analog vocoder which separates a given synthesizer sound (carrier signal) into seperate frequncy bands ranging from 50 to 5080 cycles per second. It does not have any internal oscillators so it is designed to be used as a processor for external carrier and modulator wave sources. The modulator is typically a vocal or drum beat used to modulate the carrier/synth sound being processed.

It has microphone and line inputs as well as 16 synthesizer inputs (1 for each frequency band) and 16 outputs. This 16 channel cross-matrix patching system is cumbersome, but useful during the modular synth era, allowing for full external patching between synth and vocoder sections. Other features include a high-frequency bypass, a short 6ms response time for capturing fast percussive sounds, sample-and-hold, and a global bypass switch to turn off the vocoding effect. Unfortunately there is no output mixer, MIDI or CV/Gate. It has been used by Saga, Yellow Magic Orchestra, Wendy Carlos, Moog Cookbook, Devo, and filmaker/composer John Carpenter.

Lookup Prices for Vocoder

Demos & Media

Bode Vocoder


Polyphony - N/A (16 frequency bands/channels)
Oscillators - None
LFO - None
Filter - NOne
VCA - No ADSR or output mixer controls
Keyboard - None
Memory - None
Control - Foot control jack inputs for bypass and sample and hold
Date Produced - 1979
