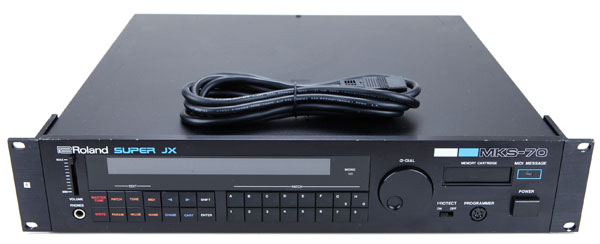

Roland MKS-70

Roland MKS-70 Image
VSE Rating
User Rating




The MKS-70 is an identical rackmount version of the JX-10 synthesizer. Released in 1986 it combines two individual JX-8P synth engines for an outstanding warm and analog sound which is used in many modern studios all over the world. It comes with onboard effects like Chorus and Delay and offers a wider range of programming using the optional PG-800 Programmer. This programmer is highly recommended for those who will be programming unique sounds since editing from the rack-face itself is cumbersome and tedious. The MKS-70 has a "chase-play" function which allows programmable delayed repeats of voices from either of its tone modules. The chorus is either off, slow or fast. It is used by Überzone, Vangelis, Astral Projection and Josh Wink.



Lookup Prices for MKS-70

Demos & Media

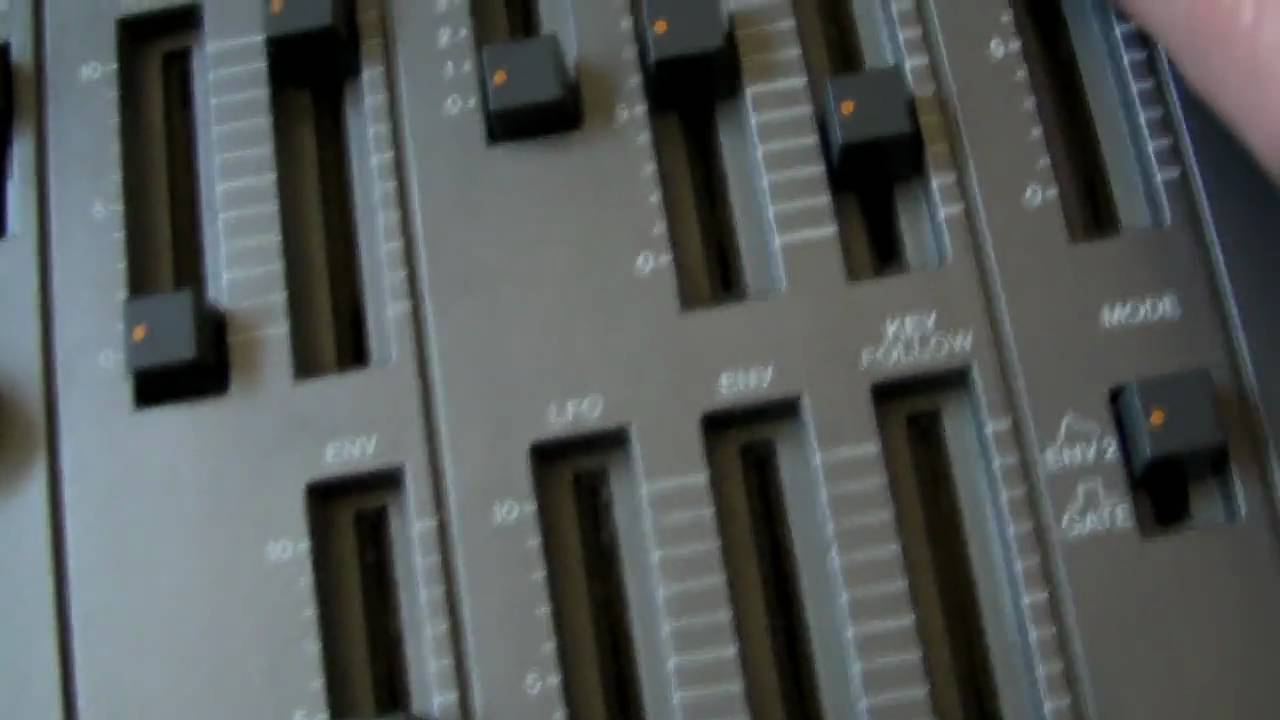

Roland MKS-70 demo
by
jdrukman
ManualRoland has made manuals for most of their products available as free PDF downloads.
Patch FileRoland's original Factory patches for the MKS-70. There are several patches in .mid and Midi SysEx formats, for Macintosh and Windows/PC.

Specifications

Polyphony - 12 voices
Oscillators - 2 DCO's per voice (24 oscillators)
Effects - Portamento, delay, chorus
Memory - External memory cartridges
VCF - low pass and hi pass filte
VCA - 2 ADSR envelope generators per voice
Arpeg/Seq - NO
Keyboard - None, rackmount
Control - MIDI
Date Produced - 1986
