Korg DDD-1

Korg DDD-1 Image
VSE Rating
User Rating




The DDD-1 is a digital programmable drum machine from Korg from the mid-eighties. It offers 18 electronic drum sounds with a sound that is typical of this era. Basic kicks, snares, toms, rimshot, closed hi hats, open hi hats, ride, crash, claps, cowbell, tambourine and cabasa. Additional sounds can be added using ROM cards. The DDD-1 also featured a sampling option allowing very short and limited sampling for that extra edge of unique sounds to add to your drumkit. Drum sounds can be triggered from the 14 assignable velocity sensitive trigger-pads and there are some individual outputs.




Korg DDD-1 Image



Programming the DDD-1 is fairly straight forward. Memory holds 100 patterns which can be linked or chained to form songs, for which there are 10 song memory locations. The drum sounds have editable parameters such as decay and tuning. For added groove in your patterns there are Roll and Flam effects. The DDD-1 is equipped with full MIDI implementation making it an easy drum machine to use in any MIDI studio. If you like typical eighties drum sounds, the DDD-1 would be a formidable alternative to other similar drum machines like the Roland TR-707 and offers more professional features than its counterpart, the DDD-5.



Lookup Prices for DDD-1 on eBay

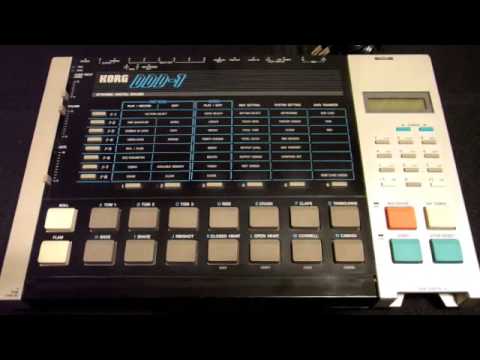

Demos & Media

DDD1
by
FlatfishGarden

Specifications

Polyphony - 18 voices
Sounds - 18 sampled sounds: 2 Kick, 2 Snare, Low/Mid/Hi Toms, Rimshot, Claps, Crash, 2 Open hihats, 2 Closed hihats, Ride, Cowbell, Tambourine and Cabasa
Controls - pitch, dynamics, decay, roll and flam
Patterns - 100
Songs - 10
Keyboard - 14 assignable velocity trigger buttons
Effects - None
Control - MIDI
Date Produced - 1986 - 1987

Resources

Images from Perfect Circuit Audio.
