EML Poly-Box

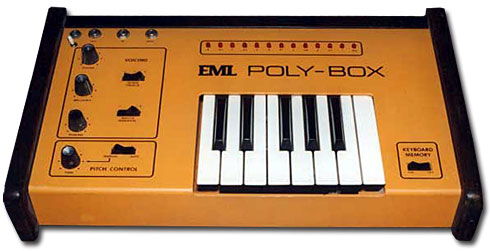

EML Poly-Box Orange Image

The Poly-Box is an odd piece of synthesizer technology. It's basically a small-remote keyboard controller for ancient analog synths, but with a twist. It takes control of your analog synthesizer and, even though they're monophonic, the Poly-Box will create polyphony by programmable chord memory presets. Designed for use via CV/Gate with other EML synths.

Here is how EML describes it:
"Poly-Box is a pitch following variable chord generator controlled by your synthesizer and Poly-Box's own keyboard with built-in memory. Poly-Box takes a single pitch from your synthesizer and creates two banks of pitch sources. Each pitch bank contains 13 simultaneously available pitch sources at precise semitone intervals - covering an entire chromatic octave. The pitch banks may be in the same or different octaves, and can cover the range from one above to three octaves below the synthesizer oscillator."

EML Poly-Box Black Image

It has been used by Devo.

Lookup EML Poly-Box Prices

The link above will take you to an eBay search for this synth to see active listings with more images, specs and information. If you don't find it there, try looking in our forum marketplace. Our marketplace gets thousands of visits every week so make sure to check back often if you want to buy or sell a synth.

Related forum topics

Comments

Are you looking to buy or sell a EML Poly-Box? Post an ad in Gear For Sale or a request in Gear Wanted. For spare parts and repair services check out Gear Services & Other Goods. Our forums also has a Buyer’s Guide section where you can ask for advice on buying synthesizers.

3 Visitor comments
franco
September 4, 2013 @ 11:58 am
i would love to buy it..where is available?
Amstrad
January 6, 2012 @ 8:51 am
I got one of this for a few years now. It´s actually a really good company for a modular synth. I found there was not many demos from this on the internet. So i put up a quick sample covering the basic tricks it can do.
http://youtu.be/X_PZrEFyhRE

By the way, the orange one pictured above seems to be modded with an extra jack/switch. Wonder what´s that for, if someone else knows...
Jacke
January 7, 2010 @ 12:39 am
Tommy Mars used this togheter with his EML 101 in Frank Zappa's band.

Post Comment!
VSE Rating

It’s Good

User Rating

Rated 2.82 (124 Votes)

  • Check Price
  • The link above will take you to an eBay search for this synth to see active listings. If you don't find it there, try looking in our forum marketplace or post a wanted classified.
  • Specifications
  • Polyphony - 26 voices (13 per bank)
  • Oscillators - n/a
  • LFO - n/a
  • Filter - n/a
  • VCA - n/a
  • Keyboard - 13 keys
  • Memory - 26 patches
  • Control - CV/Gate
  • Date Produced - 1977-84
