Teisco / Kawai Synthesizer 100F

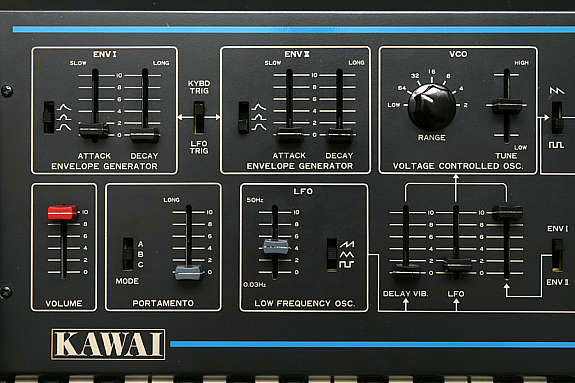

Teisco 100F Image
VSE Rating
User Rating

Although Kawai began manufacturing synthesizers under the company name of Teisco, they soon took over as Kawai which resulted in synths like the S100F above which can be found labeled either Teisco or Kawai (as pictured above). The Synthesizer 100F is a very good and classic single-vco monophonic analog synth. It has a small but usable 37 note keyboard. Sawtooth, square and noise waveforms and external sounds can be run through the synth's filters and envelopes and mixed with the oscillator.

Teisco 100F Image

Although there is only one oscillator, there's plenty of modulation ability to really liven up the sound. There's an LFO which can modulate the VCO, VCF and VCA. The VCF resonant filter is good and can be modulated by the LFO, Envelope 1, the external input or even the VCO! There's also a VCA section with Attack, Decay, Sustain and Release controls and finally there's a Hi-Pass filter. There is also a portamento effect for that final crucial analog synth effect! A typical analog synth with just about all the features and functions you'd need. It's got the classic wood side panels and a front panel layout that leads to very straight forward programming resulting in good analog bass, lead and synth sounds.

Teisco 100F Image
Teisco 100F Image
Lookup Prices for Synthesizer 100F

Demos & Media

DEMO - fun with the kawai synthesizer-100f
by
prinsenafprinsesseg

Specifications

Polyphony - Monophonic
Oscillators - 1 VCO: saw, square, noise, external audio in (2', 4', 8', 16', 32', 64' and "low" pitches)
LFO - Saw, Triangle, square waveforms with adjustable Rate
Filter - Low Pass resonant filter and High Pass non-resonant filter
VCA - Simple AD, ADS or ADR envelope modes
Keyboard - 37 notes
Memory - None
Control - CV/Gate
Date Produced - 1977

Resources

Images by Nils Odegaard.
