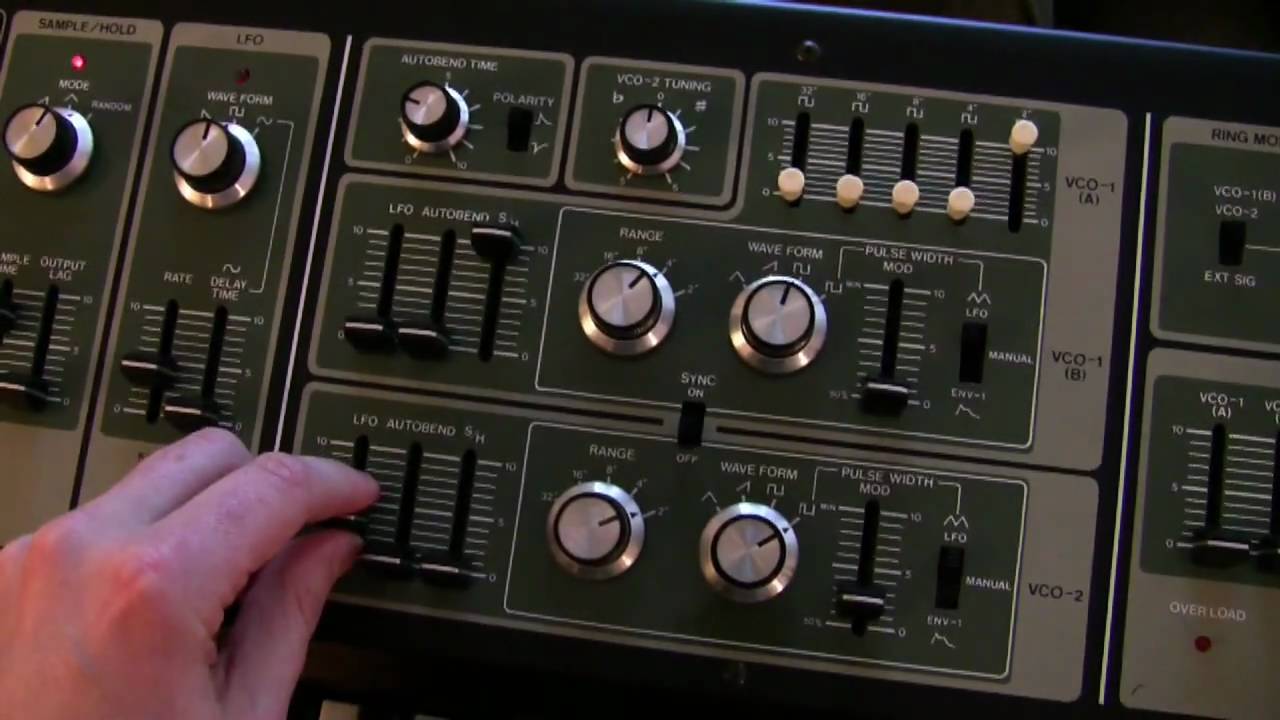

Roland SH-7

Roland SH-7 Image
VSE Rating
User Rating



A very flexible oldie from Roland. Standard SH sound with lots more creative control and tweak-ability! The VCO's are a little different than traditional SH synths, they are syncable! There's also a mixer for all the audio signals which can be distorted for brash techno sounds. It's fun and easy to use but very powerful and perfect for screamin' techno sounds and effects! It features many new functions like an external audio input, a ring modulator, syncable VCO's, more waveform shapes, white/pink noise generators and sample+hold. It has been used by INXS.



Lookup Prices for SH-7

Demos & Media

Roland SH-7 "Drone" (Sample/Hold)
by
DeathByDinSync
ManualRoland has made manuals for most of their products available as free PDF downloads.

Specifications

Polyphony - Duophonic
Oscillators - 2 VCO's (square, triangle, ramp and PWM)
LFO - One LFO w/ saw, square, sine waveforms + speed and delay control
Filter - 12dB/oct HiPass and LowPass filters w/ resonance and modulation sources from LFO, S/H, VCO2, or envelope follower
VCA - 2 ADSR Envelope generators
Extra Fun - Ring Mod, white or pink noise Gen, External Audio Input to filter or ring mod, sample+hold
Keyboard - 44 keys
Control - CV/Gate
Date Produced - 1978 - 1981
