Powertran Transcendent 2000

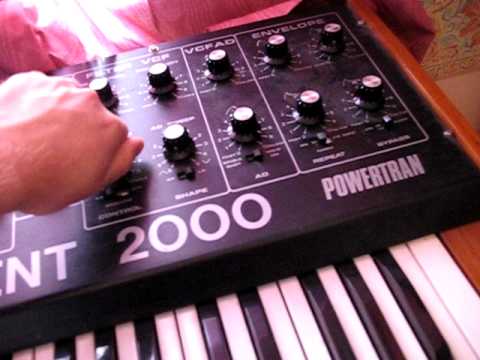

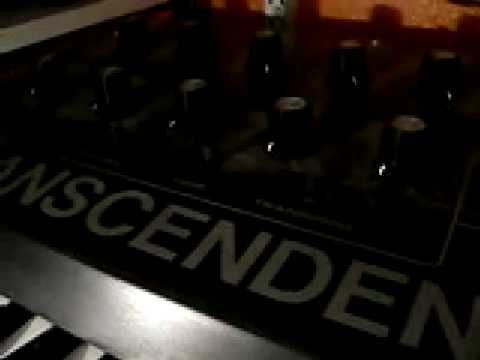

Powertran Transcendent 2000 Image

The Powertran Transcendent 2000 was an English synthesizer designed by Tim Orr, also notable for his work at EMS and Akai. In the late 1970s, a good synthesizer was too expensive for many musicians, so Orr conceived the Transcendent 2000 as an affordable kit that could be assembled at home - a similar concept to the one used by PAiA in the United States. According to legend, EMS didn't want their name associated with the varying build quality of a home made synth, hence the kit being marketed by Powertran.

In order to keep the kit cheap to manufacture and easy to assemble, it came in the form of a single PCB that was carefully laid out and accompanied by detailed schematics. Despite this simplicity, the build quality of an individual Transcendent obviously reflects the skill of the assembler. Common problems include a wobbly case, sticky keys, and potentiometers mounted too close to the front panel, making them awkward to adjust. As long as the synth hasn't been bodged too badly, these are all simply remedied by a competent owner.

Even though it was a single oscillator monophonic aimed at the musician on a budget, Orr didn't skimp on the Transcendent's features. The control section sports portamento and a pitch bender (although the original potentiometer lacks a center detent). The oscillator can be switched between a saw or pulse waveform, with an adjustable gradient for the saw, and width for the pulse which can also be modulated by the LFO. Pitch can be modulated by the LFO, or by a sample and hold with the rate controlled by the LFO. There is also a noise generator for more percussive sounds (it also acts as the source of randomness for the sample and hold). The oscillator amplitude can be shaped by a typical ADSR (Attack, Decay, Sustain, Release) envelope generator.

The filter features the usual frequency and resonance controls, with adjustable levels of modulation from both the LFO and a simple AD (Attach, Decay) envelope. Unusually for a low budget synth, the filter can be switched between lowpass and bandpass modes. The filter can produce extremely vicious resonant squeals, and there are even reports from users who have blown up a badly calibrated Transcendent with too high a resonance setting!

Sockets on the back of the synth provide inputs for CV and gate signals, a foot pedal to control filter frequency, and for an external audio source to be fed into the filter. The CV and gate inputs can be a little bit problematic, as the Transcendent doesn't conform to the usual 1V/Octave ratio, and the external gate will only trigger if a key is already held down on the keyboard. These problems can be easily rectified by using a MIDI converter that allows tuning of the CV ratio and by carrying out a simple modification that adds a switch to disable the keyboard when using external control.

Overall, the Transcendent 2000 is a great little monophonic synth, with a character similar to that of the Korg MS-20, but selling for a fraction of the price. The simplicity of the design also allows for some interesting modifications. In terms of famous users, this was the first synth owned by Joy Division, and can be heard on their debut album "Unknown Pleasures". Pictures from the Joy Division recording sessions also show legendary producer Martin Hannett using the Transcendent along with an ARP Omni II.

Lookup Powertran Transcendent 2000 Prices

The link above will take you to an eBay search for this synth to see active listings with more images, specs and information. If you don't find it there, try looking in our forum marketplace. Our marketplace gets thousands of visits every week so make sure to check back often if you want to buy or sell a synth.

Related forum topics

Comments

Are you looking to buy or sell a Powertran Transcendent 2000? Post an ad in Gear For Sale or a request in Gear Wanted. For spare parts and repair services check out Gear Services & Other Goods. Our forums also has a Buyer’s Guide section where you can ask for advice on buying synthesizers.

11 Visitor comments
visceralvoids
August 23, 2011 @ 12:23 pm
Any synth that you can blow up by setting the resonance too high definetly gets a "cool" nod from me. I think this also had random filtering as a feature.
Jason Adkins
August 11, 2011 @ 6:29 am
Memories flooding back,yeah I taped the middle C down with insulation,good for creativity though,and I remember it always added the one-step more in sequencer than the Rolands for example.actually I think the Pro-One used to do that too.
You will not believe this but I had an Arp Omni II as well,I love Joy Division but not the reason I bought it, was in my teens and trying to emulate Jean-Michel-Jarre can you believe it. Wonderful sounds that Omni made,fully polyphonic and a total nightmare to fix........
Jason Adkins
August 11, 2011 @ 6:06 am
I had one of these,I swapped a non-working Maplin 5600 for it and a CR78.
Mine worked perfectly although like people have said I had to fiddle with the tuning on my midi-cv convertor,are you sure it is only one oscillator? I actually preferred this to my Moog Rogue.
autoceremony
August 1, 2011 @ 12:58 am
chris: thanks for that info :) glad to read that the tranny eventually worked. i'm listening to 'unknown pleasures' now and try to hear the synth again.
Graeme
July 6, 2011 @ 5:07 am
I bought one with my first redundancy money - it took weeks to arrive. The biggest PCB I ever assembled. Had loads of faults at first switch on (my bad) - but gradually with the superb docs managed to iron them out. I built an external VCO/VCF/VCA module using SSM chips and the pair sounded great. Through a Watkins Copicat and a Marshall 50watt 2x12 combo I could make some great noises to scare the neighbours. The synth's in my brother's garage now - I might just reactivate it.

Post Comment!
VSE Rating

It’s Good

User Rating

Rated 3.26 (73 Votes)

  • Check Price
  • The link above will take you to an eBay search for this synth to see active listings. If you don't find it there, try looking in our forum marketplace or post a wanted classified.
  • Specifications
  • Polyphony - Monophonic
  • Oscillators - 1 VCO
  • Waveforms - Saw or Pulse plus Noise
  • LFO - 1 LFO can modulate pitch or pulse width.
  • Filter - Bandpass and Lowpass modes with Attack and Decay envelope
  • Envelope - ADSR
  • Effects - Portamento
  • Arpeg/Seq - None
  • Keyboard - 37 keys
  • Memory - None
  • Control - CV/Gate
  • Date Produced - 1978
  • Resources & Credits
  • Review and images by Chris Wareham.

    Reviewed May 2011.
